Yamaha

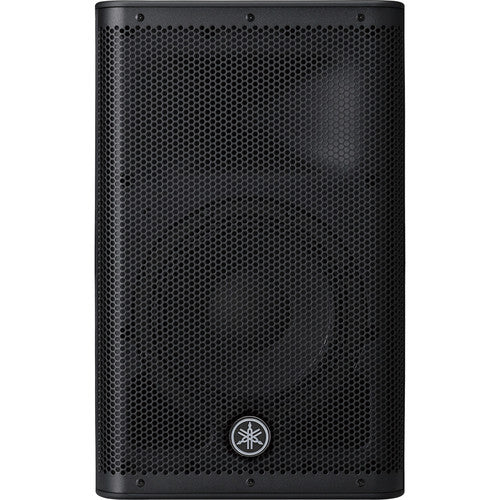

Yamaha DXR10mkII 10" 1100W 2-Way Active Loudspeaker

Yamaha DXR10mkII 10" 1100W 2-Way Active Loudspeaker

$795.99 USD
$795.99 USD
Sale Sold out
Key Features
  • Bass-Reflex ABS Cabinet
  • 10" Woofer
  • 1.75" Compression Tweeter
  • H x V: 90° x 60°
  • Biamplified Class-D Design
  • 1100W Peak Output
  • FIR-X Crossover
  • XLR, 1/4", and RCA Inputs
  • XLR Thru and Output
  • 35mm Tilt Pole Socket and M8Fly Points

The Yamaha DXR10mkII is a 15" 1100W 2-Way active loudspeaker which provides clear audio and extremely high output levels in an unobtrusive and durable design, ideal for live sound applications that require wide bandwidth audio reproduction. The cabinet has a rugged ABS construction with a bass-reflex design for enhanced bass performance with reduced turbulence. The high-power 15" woofer and 1.75" compression tweeter offer high-resolution audio with a wide frequency response and deep bass. Integrated DSP uses a FIR-X linear phase filter for an ultra-smooth crossover, while the protection circuits optimize and protect driver performance.

The speaker has a biamplified Class-D design that provides a combined peak output power of 1100W for a strong performance with minimal distortion. The integrated D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor. The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices.

The speaker can be placed on a floor or stage, but also has useful mounting options. A dual 35mm pole socket allows you to mount the speaker on top of a subwoofer with horizontal or 7° tilt toward the floor, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting. The Yamaha DXR10mkII ships with a power cord.

General Features
  • 10" powered loudspeaker with 1100W Class-D amplifier
  • Achieves high SPL output with remarkable clarity throughout its frequency response
  • 1.75" neodymium high-frequency compression driver and high-output 10" woofer which combine for a wide frequency response with powerful bass
  • Frequency Range: 56 Hz to 20 kHz
  • Max SPL: 132 dB
  • Precision 48-bit DSP processing for clear high-definition sound and built-in D-Contour intelligent dynamic control
  • Durable and compact ABS enclosure
  • Symmetrical Design for mirror-mode floor monitoring





Key Features
  • FIR-X tuning
    • Proprietary sound-processing technology utilizing a linear-phase FIR filter delivers high-quality sound at high resolution with a smooth frequency response that is unaffected by phase interference near the crossover point
  • D-CONTOUR (Dynamic CONTOUR)
    • D-CONTOUR is a multiband compressor that dynamically controls the level of each frequency range according to the application and human hearing characteristics
      • FOH/MAIN: For use as a main speaker
      • MONITOR: Optimized for use as a floor monitor
  • Mixing/LINK functionality
    • Features mixing functionality, enabling you to mix sounds by directly inputting three channel signals into the unit
    • LINK function enables you to easily configure a stereo or dual-mono SR (Sound Reinforcement) system using two DXR mkIIs
  • DSP-controlled advanced protection system
    • Powerful protection circuits ensure secure protection in the speaker unit, amplifier unit, and power supply unit
    • Protection functionality promotes optimal performance of each component and optimum reliability without distortion even in challenging environments
PA Speaker
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 1100 W Peak
700 W RMS
Amplifier Power Rating LF:
950 W Peak
600 W RMS
HF:
150 W Peak
100 W RMS
Amplifier Class Class-D
Drivers
HF Driver 1 x 1.75" / 44.45 mm Compression Driver with 1" / 25 mm Throat
LF Driver 1 x 10" / 25.4 cm Woofer
LF Voice Coil 2" / 5.08 cm
Magnet HF:
Neodymium
LF:
Ferrite
Performance
Frequency Range 56 Hz to 20 kHz -10 dB
Maximum SPL 132 dB SPL
Coverage Angle 90° H x 60° V (Horn)
Input Sensitivity Line Input:
+1 dBu (Max)
Mic Input:
-32 dBu (Max)
Line Input:
-13 dBu (Max)
Mic Input:
-22 dBu (Center)
Line Input:
+11 dBu (Center)
Line Input:
-3 dBu (Center)
Max Input Level Line Input:
+24 dBu (Balanced)
Mic Input:
+20 dBu (Balanced)
Line Input:
+16 dBu (Unbalanced)
I/O Impedance XLR Mic Input:
12 Kilohms (Balanced, Mono)
XLR Line Input:
8 Kilohms (Balanced, Mono)
1/4" TRS Line Input:
40 Kilohms (Unbalanced, Stereo)
20 Kilohms (Unbalanced, Mono)
Protections AC Coupling, Crossover Overload, DC Fault
Connectivity
Audio I/O 1 x XLR 3-Pin Input
2 x 1/4" TS Input
2 x RCA Input
1 x XLR 3-Pin Thru
1 x XLR 3-Pin Link Output
Signal Processing
Crossover 2.3 kHz
Filters 2 x High-Pass:
100 Hz, 24 dB/Octave
120 Hz, 24 dB/Octave
Dynamic Processing Compression, Multiband Limiter
Digital Signal Processing 48-Bit DSP: FIR Filter, Venue Settings
Maximum Sampling Rate 48 kHz / 24-Bit
Power
AC Input Power Universal:
100 to 240 VAC, 50 / 60 Hz
AC Power Connector 1 x IEC Input
Power Consumption 90 W
Physical
Mounting 2 x M8 (Top)
1 x M8 (Rear)
1 x 1.38" / 35 mm Pole Socket (Dual Angle)
Monitor Angle 50°
Handles 1 x Top
Cooling Fan (Variable Speed)
Construction Material ABS
Dimensions 12 x 19.8 x 12.2" / 305 x 502 x 310 mm
Weight 30.6 lb / 13.9 kg
Specifications
Item # YADXR10MKII
MPN -
Manufacturer Yamaha
