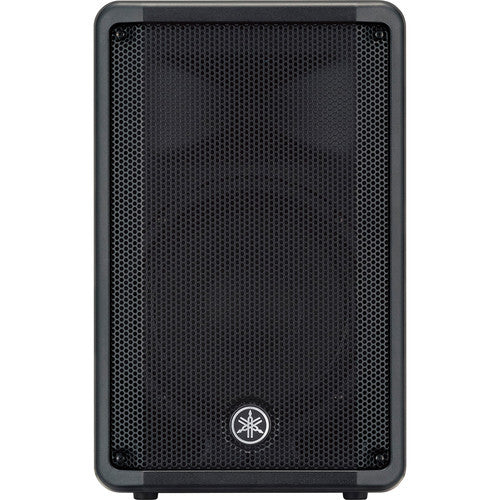

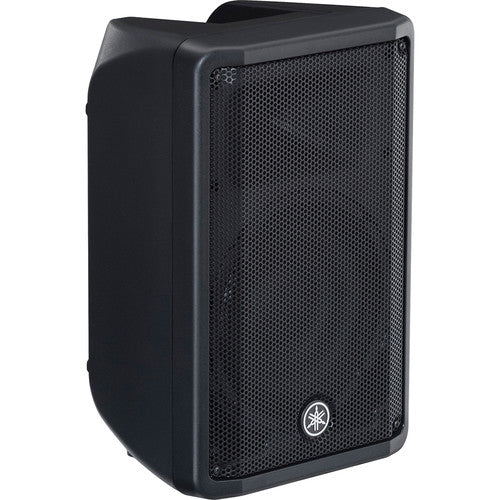

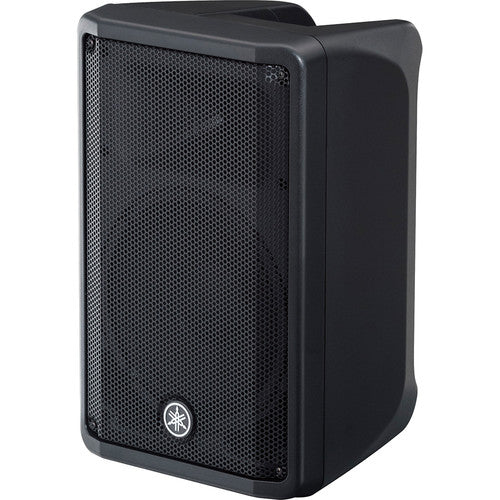

Yamaha DBR10- 10" 2-Way Powered Loudspeaker

Yamaha DBR10- 10" 2-Way Powered Loudspeaker

Regular price $399.99 USD
Regular price Sale price $399.99 USD
Sale Sold out
Key Features
  • 700W Dynamic Output
  • Class D Amplifier
  • 10" Woofer & 1" HF Driver
  • On-Board 2-Channel Mixer
  • Floor, FOH, Rigged Applications
  • Designed for Portability
  • Built-In Rigging Points

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the DBR10- 10" 2-Way Powered Loudspeaker from Yamaha is capable of up to 700W of dynamic output via its Class D amplifier. The loudspeaker features a 10" woofer and a 1" high-frequency driver and provides a maximum output of 129 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR10 is portable and can be easily transported.

High-Efficiency Class D Amplifier
The DBR10's lightweight, high performance Class-D amplifier is capable of producing up to 700W of power, achieving an SPL of 129 dB, delivered with clarity and dynamic characteristics
Custom Designed Transducer
The woofer delivers defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies

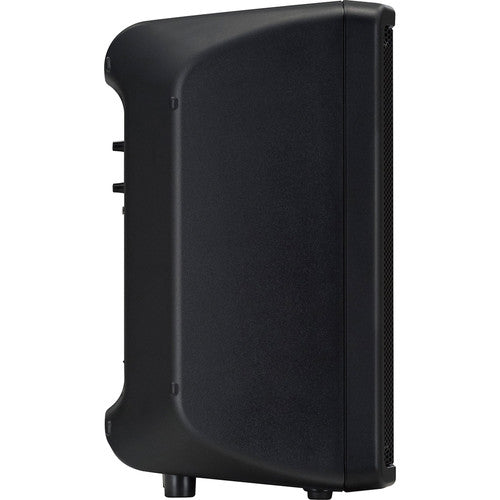

Portable Cabinet
DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

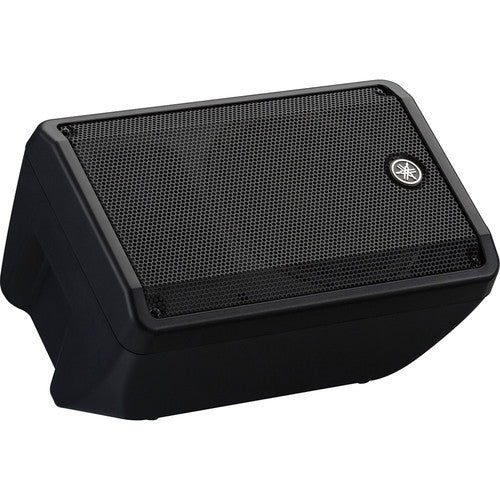

Enclosure Design for Floor Monitoring
DBR Series speakers feature an optimized 50° wedge angle for floor monitoring

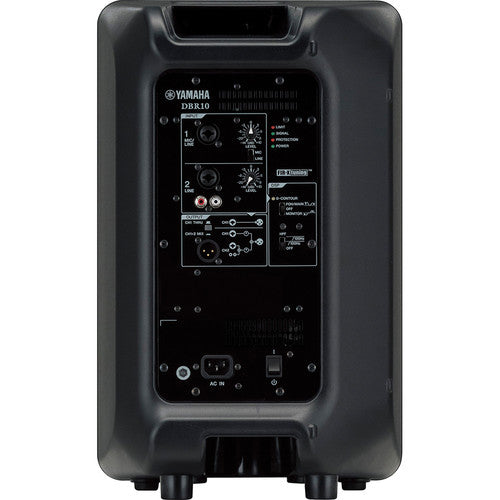

On-Board 2-Channel Mixer
DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only
Rigging Points for Installation Applications
DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts
PA Speaker
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 700 W Peak
325 W RMS
Amplifier Power Rating LF:
500 W Peak
260 W RMS
HF:
200 W Peak
65 W RMS
Drivers
HF Driver 1 x 1" / 25 mm Compression Driver
LF Driver 1 x 10" / 25.4 cm Woofer
LF Voice Coil 2" / 5.1 cm
Magnet HF:
Ferrite
LF:
Ferrite
Performance
Frequency Range 55 Hz to 20 kHz -10 dB
Maximum SPL 129 dB SPL
Coverage Angle 90° H x 60° V
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Input
1 x Stereo RCA Unbalanced Line Input
1 x XLR 3-Pin Output
Signal Processing
Crossover 2.1 kHz
Power
AC Input Power 100 to 120 VAC, 50 / 60 Hz
Power Consumption 60 W (1/8 Power)
18 W (Idle)
Physical
Mounting 1 x 1.38" / 35 mm Pole Socket (Bottom)
1 x Pole Socket
2 x M8 (Bottom)
Handles 1 x Top
Cooling Fan (Variable Speed)
Construction Material Plastic
Dimensions 12.1 x 19.4 x 11.4" / 308 x 493 x 289 mm
Weight 23.2 lb / 10.5 kg
