Xvive Audio U3 2.4 GHz Digital Wireless Microphone System
Xvive Audio U3 2.4 GHz Digital Wireless Microphone System
Couldn't load pickup availability
- For Dynamic Microphones
- Simultaneous Broadcasts on Six Channels
- 20 Hz - 20 kHz Frequency Response
- Up to 90' Range
- Five Hours of Battery Life

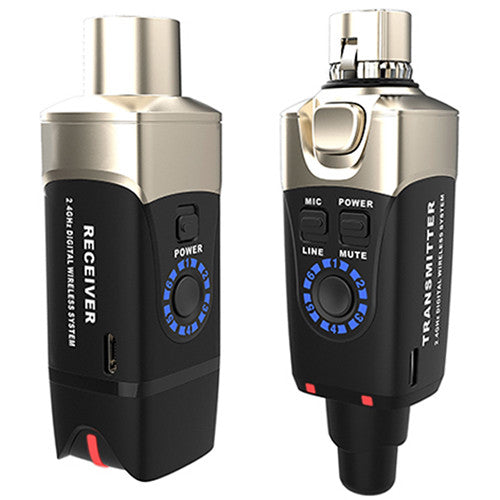

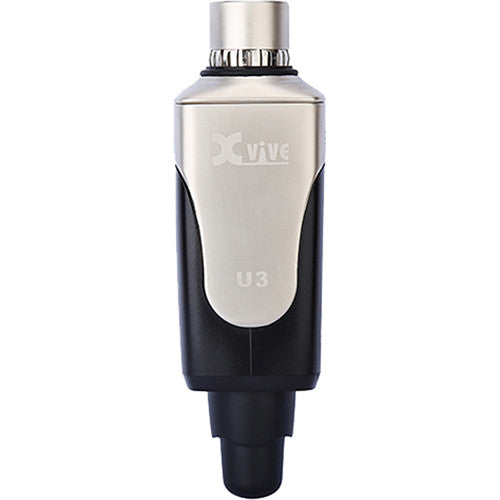

Turn your dynamic microphone into wireless with the U3 2.4 GHz Digital Wireless Microphone System from Xvive Audio. It features a 2.4 GHz wireless band, 20 Hz to 20 kHz frequency response, and less than 5 ms latency. The system works up to a 90' range, and includes two rechargeable batteries with a five-hour life for both receiver and transmitter units. The transmitter plugs into a dynamic microphone or into DI or XLR output gear, and the receiver plugs into a live sound mixer, portable PA system, or a recorder. This system broadcasts on six channels simultaneously, and is suitable for live vocals, presentations, video productions, and houses of worship.
Xvive Audio U3 Specs
| Wireless Technology | Digital 2.4 GHz |
| Number of RF Channel Frequencies | 6 |
| Included Transmitters | 1 x Plug-On |
| Diversity | Non-Diversity |
| RF Frequency Band | 2400 to 2483.5 MHz |
| Max Operating Range | 90' / 27.4 m (Line of Sight) |
| Max Transmitters per Band | 6 |
| Built-In Recorder | No |
| Timecode Support | No |
| Control App Support | No |
| Latency | 5 ms |
| Dynamic Range | 110 dB |
| Encryption | None |
| Receiver Type | Plug-In |
| Mounting Options | Plug-In |
| Antenna | 2 x 1/4 Wave Sleeve Dipole, Fixed |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR TRS Male Balanced Mic/Line Output |
| Audio Output Level | 2.8 V p-p |
| Phantom Power Protection | None |
| Frequency Response | 20 Hz to 20 kHz -3 dB |
| Network I/O | None |
| Network Protocols | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | 1 x Micro-USB (Charging) |
| Standalone Audio Interface Capable | No |
| Impedance | XLR Output: 470 Ohms (Balanced) Antenna: 50 Ohms |
| Approximate RF Sensitivity | -88 dBm |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable |
| Internal Battery Capacity | 860 mAh |
| Battery Charging Time | 2.5 Hour |
| Approx. Battery Life | 5 Hour |
| Display & Indicators | 3 x LED (Battery Status, Channel, Power, Sync) |
| Housing | Metal, Plastic |
| Dimensions | 1.2 x 1.1 x 3.9" / 31 x 29 x 98 mm |
| Weight | 0.2 lb / 92 g |
| Transmitter Type | Plug-On |
| RF Output Power | 10 mW (EIRP) |
| Audio I/O | 1 x XLR TRS Female Balanced Input (Lockable) |
| Included Cable Connector | None |
| Pad | None |
| Muting | None |
| Audio Input Level | 2.8 V p-p (Mic Level) 7 V p-p (Line Level) |
| Auto-Level Control | No |
| Gain Range | 0 / -10 dB |
| Signal Processing | None |
| Frequency Response | 20 Hz to 20 kHz -3 dB |
| Sync Method | Manual |
| Antenna | 1 x 1/4 Wave Sleeve Dipole, Fixed |
| Approximate RF Sensitivity | -88 dBm |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable |
| Internal Battery Capacity | 860 mAh |
| Battery Charging Time | 2.5 Hours |
| Approx. Battery Life | 5 Hours |
| USB/Lightning Connectivity | 1 x Micro-USB (Charging) |
| Display & Indicators | 3 x LED (Battery Status, Channel, Power, Sync) |
| Housing | Metal, Plastic |
| Dimensions | 1.2 x 1.1 x 3.9" / 31 x 29 x 98 mm |
| Weight | 3.3 oz / 93 g |
