TASCAM

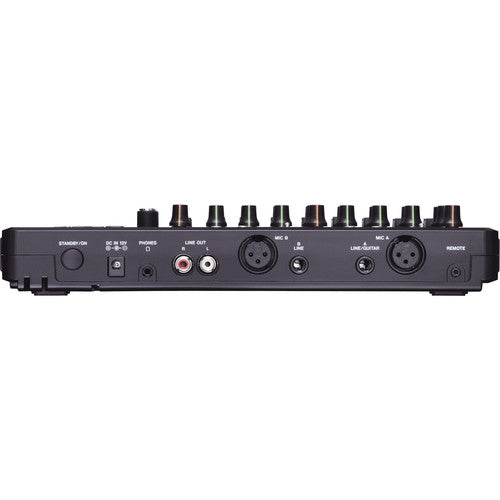

TASCAM DP-03SD Digital Portastudio 8-Track Recorder

TASCAM DP-03SD Digital Portastudio 8-Track Recorder

Regular price $299.00 USD
Regular price Sale price $299.00 USD
Sale Sold out
Key Features
  • 8 x Track Faders & 1 x Master Fader
  • Records to SD/SDHC Cards
  • 2 x Built-In Stereo Condenser Mics
  • 2 x XLR Mic/Line Inputs
  • 2 x 1/4" Inputs
  • Records 2 Tracks Simultaneously
  • Built-In EQ, Compression, Reverb
  • Includes 4GB SD Card

TASCAM DP-03SD Overview

The DP-03SD Digital Portastudio 8-Track Recorder from Tascam is a multitrack digital recorder capable of recording 2 channels simultaneously for up to 8 channels total. The DP-03SD records 16-bit/44.1 kHz resolution audio to SD/SDHC cards and can export your mix to your computer via USB.

The unit has 2 mic/line selectable XLR inputs in addition to dual 1/4" line ins, one of which can function as an instrument input for direct recording of guitar or bass. 8 channel faders and 1 master fader provide hands-on mixing, while built-in EQ, compression, and reverb help you shape your tracks. Additionally, the DP-03SD has a built-in tuner and metronome. A 4GB SD card and power supply are included.

TASCAM DP-03SD Specs

Form Factor Desktop
Number of Tracks 8
Maximum Sampling Rate 44.1 kHz / 16-Bit
Built-In Microphone 2 x Omnidirectional (Stereo Pair)
Signal Processing
EQ Parameters High: ±12 dB at 1.7 kHz to 18 kHz (Semi-Parametric)
Low: ±12 dB at 32 Hz to 1.6 kHz (Semi-Parametric)
Dynamic Processing Compressor, Multi-Band Compressor
Built-In Effects 6 x Reverb
Connectivity
Analog Audio I/O 1 x 1/8" / 3.5 mm TRS Headphone Output
1 x Stereo RCA Coaxial Unbalanced Line Output
2 x XLR 3-Pin Balanced Input
2 x 1/4" TRS Balanced Input
USB (Non-Host) 1 x Mini-USB (USB 2.0, External Storage)
Other I/O 1 x 2.5 mm TS Remote Input
Performance
Frequency Response 20 Hz to 20 kHz +1/-3 dB
Maximum Input Level XLR Inputs:
0 dBu
1/4" Inputs:
+24 dBV
Maximum Output Level Line Outputs:
+6 dBV
Headphone Output Power 10 mW per Channel into 60 Ohms (Max)
Impedance XLR Inputs:
2.4 Kilohms
1/4" Inputs:
10 Kilohms
Hi-Z Inputs:
10 Megohms
SNR ≥ 90 dB
THD ≤ 0.01%
Digital Audio
Sample Rates 44.1 kHz
Bit Depths 16-Bit
Audio Storage & Playback
Supported Media SD Card
File System Support Tascam (MTR), FAT32
Compatibility
OS Compatibility Windows XP
Windows Vista
Windows 7
Windows 8
macOS 10.2
macOS 10.3
macOS 10.4
macOS 10.5
macOS 10.6.8
macOS 10.7
macOS 10.8
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Power
Power Requirements AC/DC Power Adapter (Included)
Power Consumption 5 W
Physical
Dimensions 11.4 x 2.1 x 8.2" / 290 x 54.1 x 207.2 mm
Weight 4.0 lb / 1.8 kg

Materials
