Shure ULX-D Digital Wireless Subminiature Cardioid Lavalier Microphone Kit

Shure ULX-D Digital Wireless Subminiature Cardioid Lavalier Microphone Kit

Regular price $1,712.95 USD
Regular price Sale price $1,712.95 USD
Sale Sold out
Frequency Band
Key Features
  • For Guitar, Bass, or Other Instruments
  • WA302 Instrument Cable
  • Bodypack Transmitter
  • Single-Channel Receiver
  • Compatible with TA4F Lav/Headset Mics
  • Expandable up to 60 Channels
  • 1/10/20mW RF Output Power
  • 2.9 ms Latency for Accurate Playing
  • AES 256-Bit Encryption
  • 12 Hr with SB900A Rechargeable Battery

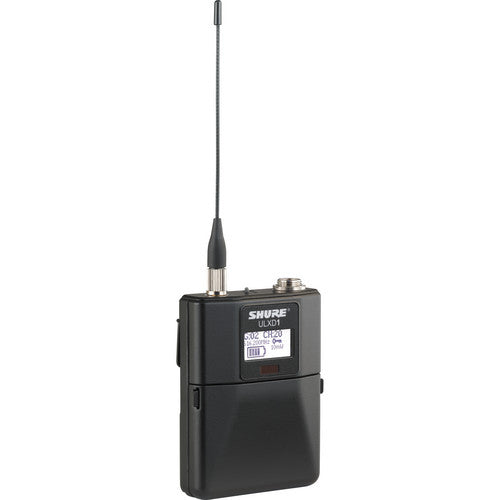

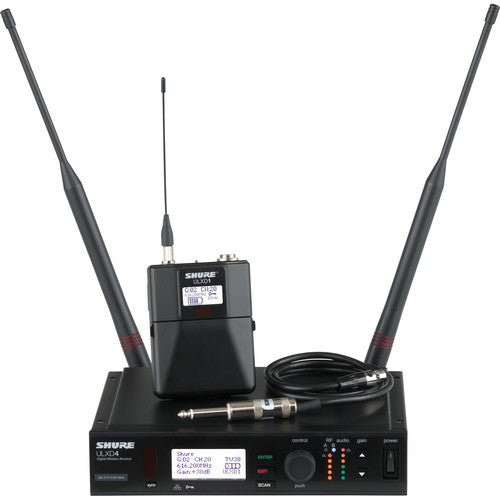

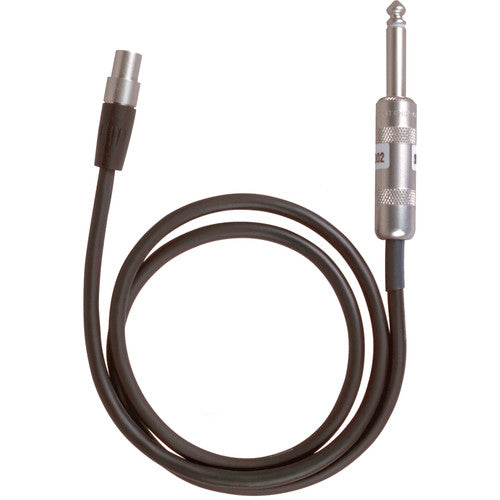

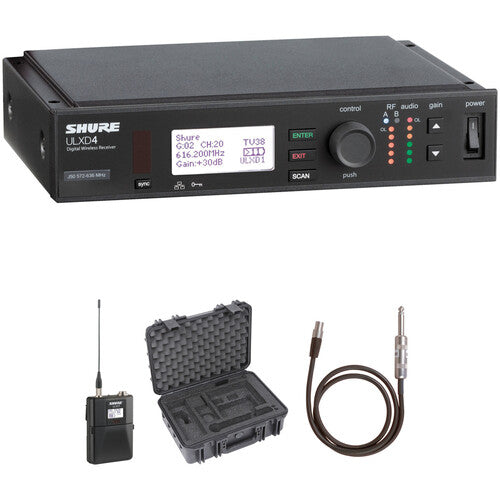

Giving musicians the opportunity to roam the stage wirelessly, the Shure ULX-D Digital Wireless Bodypack Instrument Kit from B&H delivers professional-grade audio quality with 2.9 ms latency for a responsive performance. It includes a single-channel ULXD4 wireless receiver, a ULXD1 bodypack transmitter, and a WA302 instrument cable for connecting a guitar, bass, or any instrument with a 1/4" output to the transmitter's TA4M input.

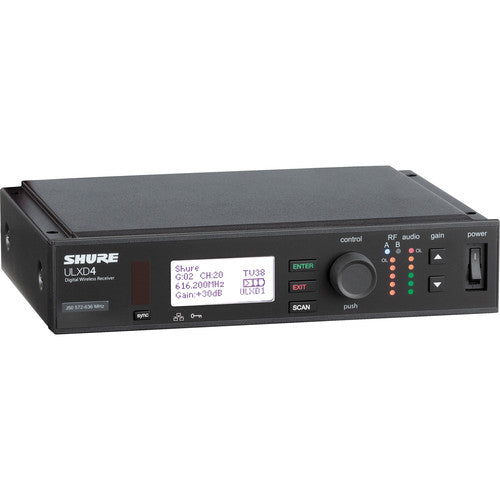

Shure ULXD4 Single-Channel Digital Wireless Receiver (G50: 470 to 534 MHz)

Part of the ULX-D wireless series, the Shure ULXD4 houses a single digital receiver in a rugged half-rack unit with an external power supply.

The ULX-D Series simplifies the set up and management of large numbers of wireless systems. It is ideal for professional sound reinforcement applications in large live venues and houses of worship, as well as A/V installations in conference, educational, and corporate facilities. Compatible with a wide selection of Shure transmitters and mic capsules, it delivers pristine 24-bit/48 kHz digital audio, capturing every detail with clarity, accurate low end, and crisp transient response.

The ULX-D operates in the UHF band, utilizing Digital Predictive Switching Diversity to protect the transmission from interference, delivering rock-solid RF signal stability without audio artifacts. In Standard mode you can run up to 17 channels per 6 MHz TV channel, at a range up to 330'. Alternatively, the High-Density mode lets you run up to 47 channels per 6 MHz TV channel, at a maximum range of 98'. The system offers AES-256 encryption for security.

The unit features audio and RF meters, 60 dB of gain control, and both XLR and 1/4" outputs. A large LCD screen and intuitive controls let you quickly make adjustments, even in low-light situations. Additional features include automatic frequency scanning, IR sync, gain optimization to match any input source, and internal limiting to prevent clipping.

The Ethernet port allows multiple receivers to be easily networked together for simplified frequency coordination and deployment via Shure's Wireless Workbench software. In addition, the Channels Mobile App enables you to control the system remotely from an iOS device.

Shure Professional-Grade Digital Wireless Audio Quality
  • 24-bit/48 kHz digital audio delivers clear and accurate sound reproduction
  • Extended 20 Hz to 20 kHz frequency range with flat response
  • > 120 dB wide dynamic range for excellent signal-to-noise performance
  • Up to 60 dB of independently adjustable gain for each channel
  • Works with a wide selection of Shure mics and transmitter types including the ULXD1 bodypack and ULXD2 handheld transmitters that provide complete mobility for presenters/performers, and the ULXD6 boundary and ULXD8 gooseneck base transmitters to accommodate meeting rooms with flexible seating layouts
  • ULX-D receivers are also compatible with QLX-D bodypack and handheld transmitters
Up to 60 Channels with Rock-Solid Transmission
  • Single-channel receiver operates in the G50: 470 to 534 MHz UHF band
  • 64 MHz tuning range lets you run up to 60 channels at the same location in Standard mode or 90 channels in High-Density mode
  • Digital Predictive Switching Diversity uses a microprocessor to switch antennas before dropouts occur
  • Comes with two remoteable 1/2 wave dipole antennas
  • 256-bit AES encryption offers unbreachable privacy—uses unique, randomized encryption key generated every time encryption is enabled
  • Interference detection and alerts provide instant confirmation on both the receiver LCD and WWB software when interference is present
  • Adding UA874 active antennas or PA805 passive antennas increases the range of your system and offers increased protection against interference
  • The UA844+SWB antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time
Intelligent Hardware Simplifies Setup, Monitoring & Control
Networked Control



  • Ethernet networking enables real-time, precision monitoring and control of your system, as well as automatic frequency coordination across multiple receivers, using Wireless Workbench, SystemOn, and Axient Spectrum Manager software
  • Compatible with external controllers such as AMX and Creston
  • Crosssubnet control-enabled for management between multiple facilities or venues

Functionality

  • Optimized scanning automatically finds, prioritizes, and deploys the cleanest frequencies to transmitters over IR sync
  • Proprietary Gain Ranging optimizes system dynamic range for any input source, eliminating the need for transmitter gain adjustments
  • Internal limiter automatically engages to prevent digital clipping of your audio
  • Unit has an individual gain control, an XLR output with switchable mic/line level, and a 1/4 output
  • Quick visual check using audio and RF LED meters with peak indicators
  • Intuitive front-panel controls with lockout feature and easily readable LCD with adjustable contrast
  • Remote Control: Make adjustments anywhere in the venue via the Channels Mobile App for iOS devices
  • Smart Power Management on Transmitters: Advanced SB900A lithium-ion rechargeable batteries with SBC chargers (both available separately) provide extended transmitter battery life over alkaline batteries, battery-life metering in hours and minutes (accurate to within 15 minutes), and detailed tracking of battery health status

Specs

Wireless Technology Digital UHF
Number of RF Channel Frequencies 2560
Diversity Antenna Diversity
RF Frequency Band G50:
470 to 534 MHz
RF Bandwidth 64 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1' / 100 m
Max Transmitters per Band 60
Latency < 2.9 ms
Modulation Proprietary
Receiver
Receiver Type Tabletop
Mounting Options Rackmount, Tabletop (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage 12 to 13 VDC, 150 mA (per Antenna)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Male Balanced Output
1 x 1/4" TRS Female Balanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Output:
+18 dBV (Line Level)
XLR Output:
-12 dBV (Mic Level)
1/4" Output:
+12 dBV (Consumer Level, Instrument Level)
Phantom Power Protection On 1/4", XLR Outputs
Frequency Response 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Network I/O 1 x RJ45 (10/100 Mb/s)
Network Protocols DHCP, Manual IP
Impedance XLR Output:
100 Ohms (Balanced)
Approximate RF Sensitivity -98 dBm
Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 15 VDC at 600 mA (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 250 mA
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
2 x Multi-Segment LED (AF Level, Output Level, Peak)
Housing Steel
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 6.7 x 1.7 x 7.8" / 171 x 44 x 197 mm
Weight 2 lb / 0.9 kg
Specifications
Item # SHULXD14G50
MPN -
Manufacturer Shure
