Shure
Shure BLX14R/W93 Rackmount Wireless Omni Lavalier Microphone System
Shure BLX14R/W93 Rackmount Wireless Omni Lavalier Microphone System
Couldn't load pickup availability
- For Broadcasters and Performers

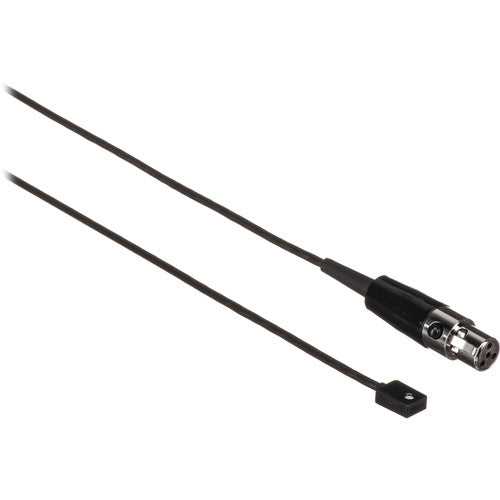

- WL93 Miniature Omnidirectional Lav Mic
- Lightweight Bodypack Transmitter
- Single-Channel Rackmount Receiver
- 123 Auto-Scan Frequencies
- Two Removable Antennas with Diversity
- Adjustable Output Level
- Rugged Metal Construction
- 14-Hour AA Batteries
- Expandable to 12 Mic Channels/300' Range
The Shure BLX14R/W93 brings broadcasters, on-screen talent, and theatrical performers a cost-effective wireless lavalier microphone system with quality sound, simple setup, intuitive operation, and dependable performance right out of the box. It includes the rugged BLX4R single-channel receiver with LCD display, adjustable output level, and removable antennas for rackmounting the unit—ideal for broadcast applications.
The BLX14R/W93 also includes a miniature WL93 omnidirectional lavalier mic with clip and windscreen, and a bodypack transmitter. The receiver features one-touch QuickScan frequency selection to quickly search 123 available frequencies and locate a clean RF channel in case of interference. It provides up to 14 hours of continuous use with two AA batteries, at a range up to 300'. Up to 12 mic channels can operate simultaneously in each frequency band.
This system is well suited for hands-free speech in TV and home video studios, and can also be used in theatrical productions.
The LCD display shows group and channel settings, and allows you to meter audio level and signal strength. An LED indicator even lets you keep an eye on the transmitter's remaining battery life. The unit offers 1/4" and XLR connectors with adjustable output level for flexible connectivity to PA systems and mixing boards.
- The discrete MX153 sub-miniature earset mic provides exceptional clarity in spoken word applications.
- The PGA31 is a comfortable, durable headset microphone for active performance.
- Instrumentalists can attach the WB98H/C flexible gooseneck instrument microphone for brass, woodwind, and percussion applications.
- The WA302 guitar cable lets you connect the bodypack transmitter to a guitar or bass.
- The BLX2 handheld transmitter is available with three different mic capsules for presenters who prefer the flexibility of a handheld microphone.
Shure BLX14R/W93 Specs
| Wireless Technology | Analog UHF |
| Number of RF Channel Frequencies | 123 |
| Included Transmitters | 1 x Bodypack |
| Diversity | Antenna Diversity |
| RF Frequency Band | H9: 512 to 542 MHz |
| RF Bandwidth | 24 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 12 |
| Dynamic Range | 100 dBA |
| Receiver Type | Tabletop |
| Mounting Options | Rackmount (with Included Hardware) |
| Rackmount Size | 1 RU (1/2 Rack) |
| Antenna | 2 x 1/4 Wave External, Detachable (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x XLR 3-Pin Male Balanced Output 1 x 1/4" TS Female Unbalanced Output |
| Audio Output Level | XLR Output: -20.5 dBV (Mic Level) 1/4" Output: -13 dBV (Instrument Level) |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
| Impedance | XLR Output: 200 Ohms 1/4" Output: 50 Ohms |
| Adjacent Channel Isolation | >50 dB |
| Power Requirements | AC/DC Power Adapter |
| AC/DC Power Adapter | 12 to 15 VDC at 260 mA, Center-Positive (Included) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 150 mA |
| Display & Indicators | 1 x Backlit LCD (AF Level, Channel, Group, Metering, RF Level) 1 x LED (Transmitter Battery Status) |
| Housing | Steel |
| Operating Temperature | 0 to 135°F / -17 to 57°C |
| Dimensions | 7.8 x 2 x 6.4" / 198 x 50 x 163 mm (without Mounting Hardware, Antennas) |
| Weight | 35.2 oz / 998 g |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Input (Lockable) |
| Muting | Off/On Switch |
| Auto-Level Control | No |
| Gain Range | -16 to +10 dB |
| Sync Method | Manual |
| Antenna | 1 x Flexible Whip, Fixed (Beltpack) |
| Power Requirements | Battery |
| Battery Type | 2 x AA (Included) |
| Approx. Battery Life | 14 Hours (Alkaline) |
| Display & Indicators | 1 x Multi-Segment LED (Channel, Group) 1 x LED (Battery Status, Power) |
| Housing | ABS |
| Dimensions | 2.5 x 4.3 x 0.8" / 64 x 110 x 21 mm |
| Weight | 2.6 oz / 75 g (without Batteries) |
| Microphone Type | Lavalier |
| Sound Field | Mono |
| Capsule | Electret Condenser |
| Polar Pattern | Omnidirectional |
| Frequency Range | 50 Hz to 20 kHz |
| SNR | 76 dB |
| Equivalent Noise Level | 28 dB |
| Maximum SPL | 120 dB SPL |
| Impedance | 3000 Ohms |
| Sensitivity | -38 dBV/Pa |
| Dynamic Range | 102 dB |
| Output Connectors | 1 x TA4/Mini XLR 4-Pin Female (Lockable) |
| Cable Length | 4.17' / 1.27 m |
| Operating Voltage | 2 to 10 V |
| Weight | 0.56 oz / 16 g |
