Name: RCF NX 910-A Two-Way 10" 2100W Powered PA Speaker with Integrated DSP
Brand: Rcf
SKU: RCNX910A
Price: 1299.0 USD
Availability: InStock

Designed to deliver stellar audio performance and versatility for intensive audio applications, the RCF NX 910-A is a highly flexible, easy-to-use, 2100W powered PA speaker for today's working musicians, singer/songwriters, mobile DJs, and other sound providers. The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor.

The highly efficient 2100W Class-D bi-amplifier delivers 1400W to the 10" woofer and 700W to the 1.75" titanium/neodymium compression driver, which provide full-range audio (50 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. The NX 910-A utilizes RCF's proprietary FiRPHASE and Bass Motion Control DSP processing to deliver absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.

At a Glance

Up to 130 dB sound pressure level (SPL)
2100W Class-D bi-amplification
50 Hz to 20 kHz linear frequency response
1.75" Compression Driver
10" Woofer
FiRPHASE zero degrees phase technology
Bass Motion Control woofer excursion management

Preset Selector

LINEAR: This preset is recommended for all regular applications of the speaker
BOOST: This preset creates a loudness equalization recommended for background music applications when the system plays at a low level
STAGE: This preset is recommended when the speaker is used as a stage monitor

Power that Moves

The most powerful amplifier in its class. RCF's improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 2100W power, the 2-channel NX 910-A Class-D amplifier is 50% more powerful than previous models, able to manage extreme sound pressure levels with an ultrafast attack, realistic transient response, and very low heat loss. NX 910-A is energy-efficient, so there's no need for a cooling fan—the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet—with no moving parts. The input circuit features a new low-distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. All NX 9 series amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

Superior Transducers

Lightweight and powerful, RCF drivers are a reference in high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The new 1.75" voice coil design with Polyimide-Kapton dome features a new bonding technology and reinforcement ribs making it 10 times more rigid than previous models, for increased accuracy and durability. The redesigned phase plug increases sound clarity with less distortion. Low-frequency transducer design gains more stability over higher currents, with less distortion and better heat handling.

Bass Motion Control

When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.

Tour-Proven Workhorse

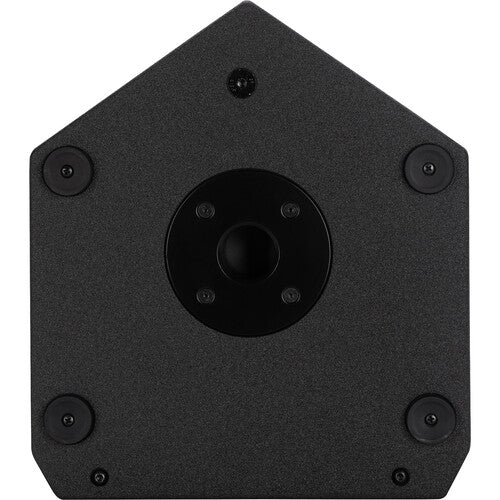

NX 910-A can operate as either the main system or as a floor monitor. This flexibility makes it a smart choice for a wide range of live sound applications. The rugged all-wood cabinet is easy to carry, thanks to top handle. The lower side includes a steel pole socket for mounting on a stand or a subwoofer pole. Each model can also be flown, wall- or truss-mounted using the six included M10 rigging points and special accessories. From the wood cabinet to the final texture and the rugged protective grille, NX 910-A offers maximum strength for intensive use on the road and can be used for fixed installation.

FiRPHASE

RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener. The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.

Item #	RCNX910A
MPN	-
Manufacturer	Rcf
