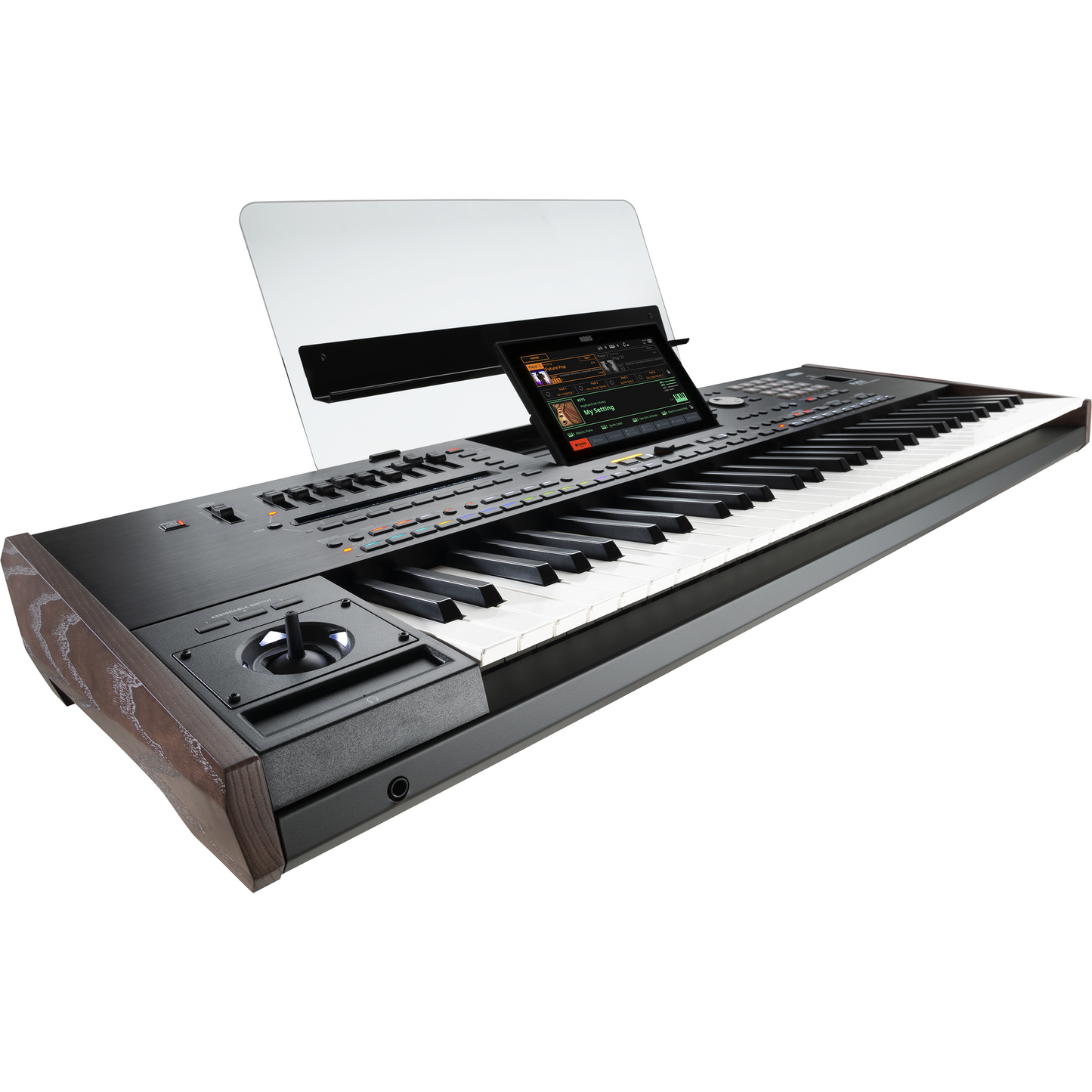

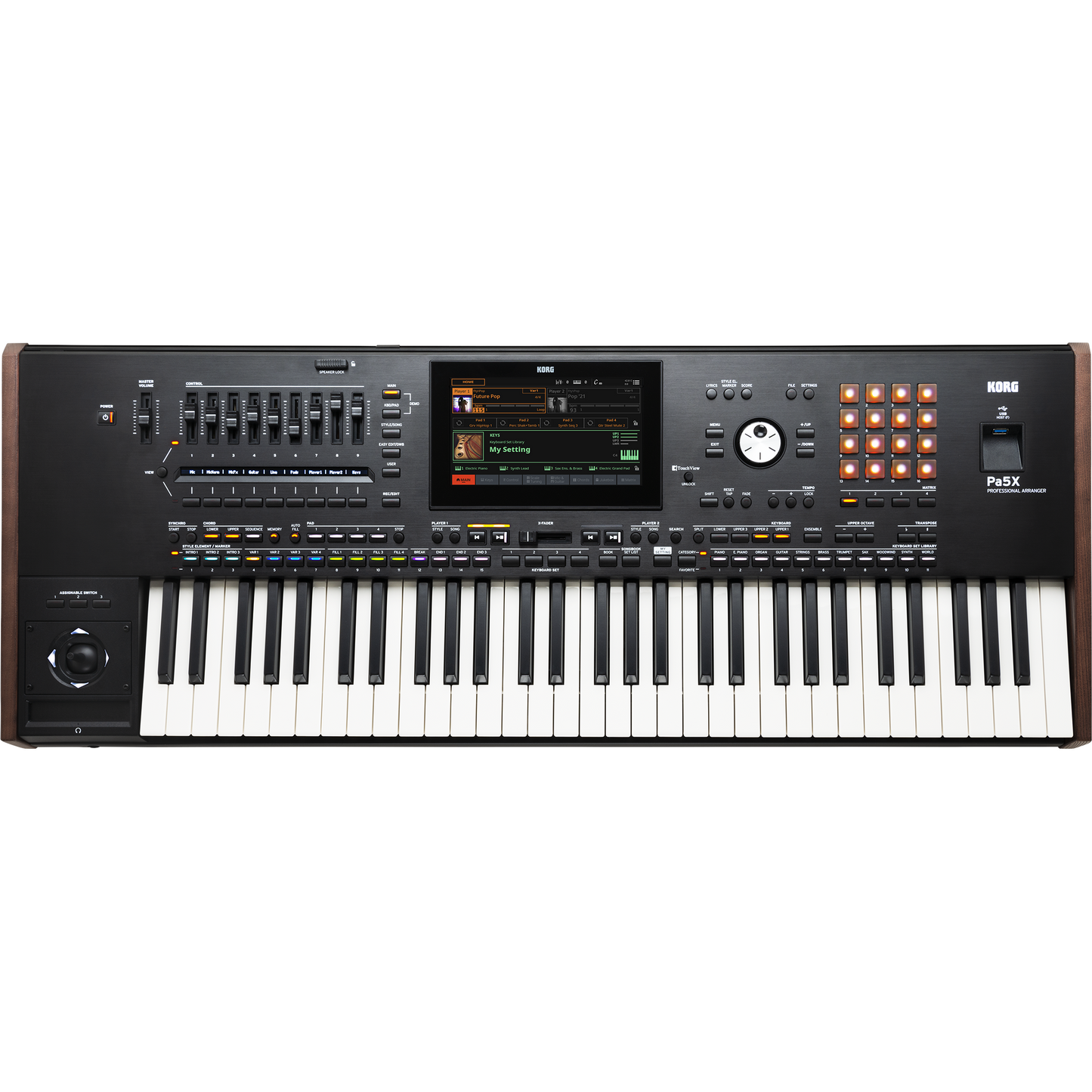

Korg Pa5X 61-Key Professional Arranger Keyboard

Korg Pa5X 61-Key Professional Arranger Keyboard

Regular price $4,899.99 USD
Regular price Sale price $4,899.99 USD
Sale Sold out



New Inspiring Sounds, Refreshing Workflow - The Korg Pa5X 61-Key Professional Arranger Keyboard

Pa5X is the new flagship in the KORG Professional Arranger lineup, redefining an arranger keyboard. Completely redesigned with a state-of-the-art sound engine and a streamlined color-driven user interface, the Pa5X comes packed with thousands of inspiring Sounds and hundreds of fresh Styles, all instantly accessible through an inviting workflow. A completely new front panel featuring an assignable Pad Matrix and Mixer section, multicolored LED buttons, and a huge tilt-able touchscreen puts you in control of your music making experience at all times. Pa5X excels both as a live performance instrument and as a powerful creative tool in the studio, allowing you to find your ideal sound no matter where your music takes you.


  • Sturdy aluminum body and genuine wooden side-panels for a luxury appearance
  • Large 8-inch tiltable touch screen that displays a completely redesigned GUI (graphical user interface)
  • EDS-XP sound engine, built upon the technology used in Pa4X with advanced hardware and a powerful new operating system
  • Fully programmable control section with 9 buttons and 9 sliders
  • Smooth Sound Transition (SST) technology, allowing for seamless transitions between sounds
  • Songs and Styles can be saved into the onboard SongBook, whose database-like entries are easy to synchronize with external score readers on a tablet
  • Compatible with the KORG PaAS Amplification System, a speaker system which has been specifically designed to easily connect directly to Pa5X without cables



  • Keyboard: 61 keys (C2 – C7) Semi–weighted keys with Aftertouch
  • Case: Aluminum case with wooden side panels
  • Operating System: Upgradable Operating System
  • Sound Generator: EDS-XP (Enhanced Definition Synthesis-Expanded); multimode filters with resonance, 3-band EQ for each track
  • Polyphony: 160 Voices, 160 Oscillators
  • Effects
    • Keyboard Tracks: 3 insert effect, 3 master effects
    • Style/Song: 10 insert effects; 3 master effects
    • Master EQ and Finalizer for Songs and Styles
    • Final Mastering Effects: Waves | MaxxAudio Suite
  • Guitar Processor: Guitar rack (4 effect-slots) with stompbox and amp simulation
  • Sounds and Drum Kits
    • Factory: More than 2,200 Factory Sounds
    • User Area: 768 Sounds, 384 Drum Kits
    • Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage, Vibrato/Chorus, Rotary Speaker with Amp Simulator
    • Natural Ambience Drum Sounds, Round Robin features
    • Defined Nuance Control (DNC) Technology
    • Quick and Full Sound Editing, Drum Family and Full Drum Kit Editing
  • Sampling
    • User PCM Sample memory: 4 GB of data, equivalent to 8 GB linear when compressed
    • Loads KORG, WAV, AIFF and SoundFont formats
    • Saves KORG, WAV and AIFF formats
    • Full Edit, Time Slice, Sampling features
  • Styles
    • Factory: More than 600 Factory Styles, freely programmable
    • Eight Style Tracks, 4 Keyboard Sets and 4 Pads per Style; Programmable Sounds, Effects and Style parameters
    • Guitar Mode 2, Parallel and Fixed NTT (Note Transposition Table)
    • Style Record and Event Edit
    • Style Elements: 3 Intros, 4 Variations, 4 Fills, 1 Break, 3 Endings
    • Style Controls: Play/Stop, Synchro Start, Synchro Stop, Tap Tempo/Reset, Auto Fill, Memory, Bass Inversion, Manual Bass, Bass and Lower Backing, Drum and Bass, Individual Style Tracks Mute, Style to Keyboard Set Set
  • Chord Sequencer
    • Factory: More than 200 Chord Sequences
    • Chord Sequence Recorder/Player
    • Chord Sequences can be saved to Style and SongBook Entries
  • Songs
    • Patented XDS Crossfade Dual Player with X-Fader Balance control
    • Supported formats: MID, KAR, MP3 + Lyrics, MP3+G
    • Lyrics, Score, and Chord data can be displayed on screen, or on external video monitor
    • Markers with Add, Delete, Edit, Loop and AutoScroll functions
    • Jukebox function
    • Full-featured, 16-track Sequencer, Song Edit
  • SongBook: Fully programmable music database based on Styles, MIDI Songs (MID and KAR files), MP3 Songs with Artist and Genre tags
  • Compatibility: Legacy Pa-Series models: Styles, Keyboard Sets (Performances), Sounds (Programs), Songs, Pads
  • Pads
    • Factory: More than 400 Pads
    • Four Assignable Pads + Stop Buttons
    • Pad Record function
  • Control Section: 9 Assignable Sliders, 9 Assignable Buttons, Strip Display; 4 Preset + 1 User settings
  • Matrix Section: 16 Matrix Pads, 4 Preset buttons
  • Audio Inputs
    • Mic: Mono with Gain control and Phantom Power (Combo XLR, balanced)
    • Guitar: Mono with Gain control (1/4-inch jack, unbalanced)
    • Line 1: Left/Right (1/4-inch jacks, balanced)
    • Line 2: Stereo (1/8-inch mini-jack, unbalanced)
  • Audio Outputs
    • Line: Main Left/Right, Separate Outs 1/2/3/4 (1/4-inch jacks, balanced)
    • Headphones: 1/4-inch jack
  • Video Output: HDMI connector
  • MIDI: IN, OUT, THRU standard MIDI connectors, USB to MIDI, through the USB Device port, 16 User-definable MIDI Presets
  • Storage
    • Internal Drive: 1 GB
    • Micro SD Card (not included): Rear-panel slot with plastic cover
    • USB Flash Drive (not included): Can be connected to the USB Host ports
    • Display: 8-inch wide capacitive color TouchView TFT display, 800 x 480 resolution
    • Clock: Internal System ClockPower Consumption100-240 Volts, 50/60 Hz, < 0.2 Watt in standby / 20 Watt normal / 45 Watt with PaAS installed
    • Dimensions: 40.20 x 14.73 x 4.99 inches
    • Weight: 15.1 kg / 33.29 lbs


Manufacturer: Korg USA
Model: PA5X61
SKU: I715992-1-WHXA
