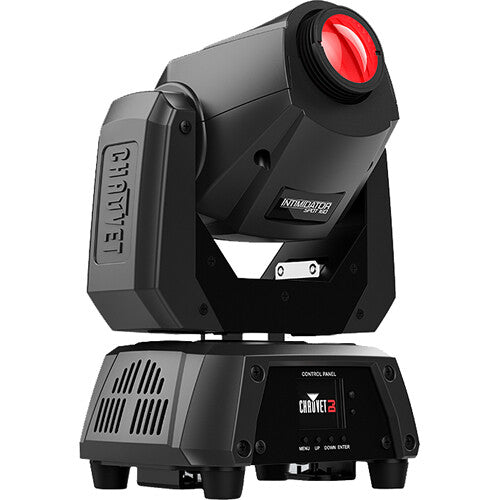

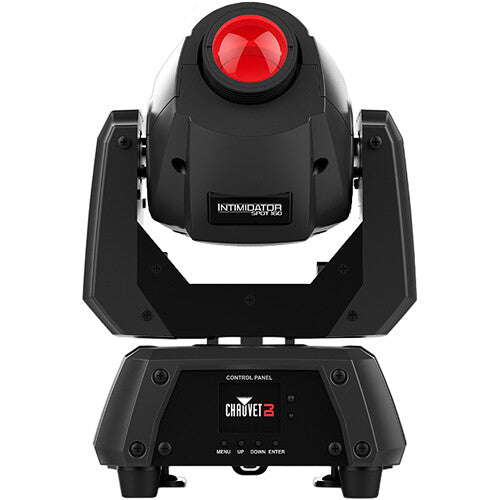

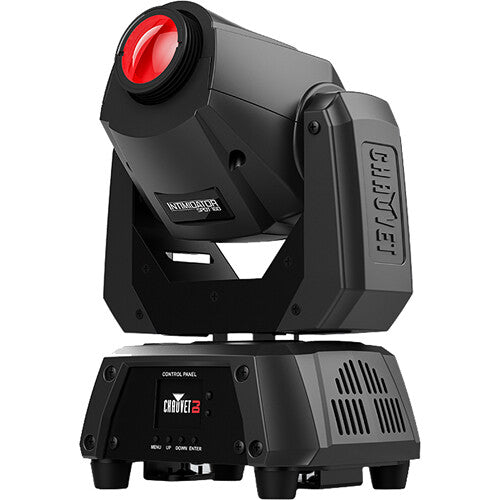

Chauvet DJ Intimidator Spot 160 LED Moving Head Light Fixture

Chauvet DJ Intimidator Spot 160 LED Moving Head Light Fixture

Regular price $499.99 USD
Regular price Sale price $499.99 USD
Sale Sold out
Key Features
  • 32W Cool-White LED Engine
  • 17° Beam Angle
  • Pan/Tilt: 540°/270° Totem Mode
  • 9 Colors + White, Continuous Scroll
  • 9 Gobos + Open, Interchangeable
  • Built-In Programs, Effect Macros
  • 2 DMX Channel Modes: 5 or 11
  • Universal Autosensing Power Supply
  • Mounting Hardware Included

Energize dance floors in clubs, bars, and event spaces with the CHAUVET DJ Intimidator Spot 160, a feature-packed moving-head LED light fixture that's designed for mobile performance. Powered by a single 32W cool-white LED, the fixture includes numerous features including an adjustable strobe speed, movement macros, fast and precise head movements, a color wheel, and a gobo wheel that projects crisp gobos from nearly any distance. This versatile fixture allows for flexible effect design and precise show control.

The Intimidator Spot 160 has a built-in Totem mode, which restricts pan and tilt movements to keep the beams on the dancefloor. The unit allows for both standalone and DMX operation, with sound-active and automatic modes available in standalone mode. Use the master/slave configuration to coordinate four fixtures without the need for a controller. Two channel modes (5 or 11 channels) are available for DMX operation, enabling various levels of precise control. In addition to DMX daisy-chaining, the Intimidator Spot 160 supports power linking, minimizing time spent on cable runs and finding power outlets. Convenient, wireless non-DMX control is available via the optional IRC-6 remote. The fixture ships with a hanging bracket and a power cord.

Effects and Features
  • Bright LED moving head designed for mobile applications
  • Single 32W cool-white LED
  • Project crisp gobos
  • Beam angle: 17°
  • Pan/tilt: 540°/ 270°
  • Built-in Totem mode restricts pan and tilt to keep the beams on the dancefloor
  • 9 colors + white—split colors, continuous scroll at variable speeds
  • 9 gobos + open (9 aluminum)—continuous scroll at variable speeds
  • Built-in movement macros
  • Electronic dimming: 0-100%
  • Variable strobe
  • Set, save, and recall one scene manually directly from the full-color LCD display
  • Multivoltage operation: 100-240 VAC
  • Includes 1/4 turn hanging bracket for quick removal when needed
  • Compatible with the optional CHS-1XX VIP gear bag
Control
  • Two DMX channel modes: 5 or 11 channels
  • Sound active and automated programs provide shows right out of the box
  • Use master/slave configuration with four fixtures to create eye-catching synchronized shows in automated or sound modes
  • LED display with 4-button menu for easy navigation
  • Convenient, wireless non-DMX control using the optional IRC-6 remote
Linking
  • DMX-link the unit to other fixtures via the XLR 3-pin DMX I/O
  • Power-link up to 9 fixtures at 120V, or up to 16 fixtures at 230V

CHAUVET DJ Spot 160 Specs

Light
Light Type Moving Head / Spotlight
Light Source 1 x White LED - 32 W / 2.3 A
Light Source Life Expectancy 50,000 Hours
Colors Orange
Lime
Cyan
Red
Green
Magenta
Yellow
Blue
White
Photometrics 17°:
564.8 fc / 6080 Lux at 6.6' / 2 m
Beam Angle 17°
Dimming Electronic, 0 to 100%
Performance
Operating Modes Automatic, DMX, Primary/Secondary, Sound-Active, Standalone, Static Color, Totem
Macros / Programs Movement Macro
Effects Gobo Scroll (Variable Speed)
Color Split
Color Scroll (Variable Speed)
Strobe (Variable Speed)
Strobe Rate 0 to 20 Hz
Gobos 9 x Fixed Metal Gobo
PWM Frequency 2.4 kHz
Movement
Tilt Ranges 230° / 180° / 90°
Pan Ranges 540° / 360° / 180°
Control
Control Protocols DMX512
DMX Channel Modes 2 Mode(s):
5 / 11-Channel
Display / Controls LCD / 4-Button
Remote Control IR Remote (with Optional Equipment)
Connectivity

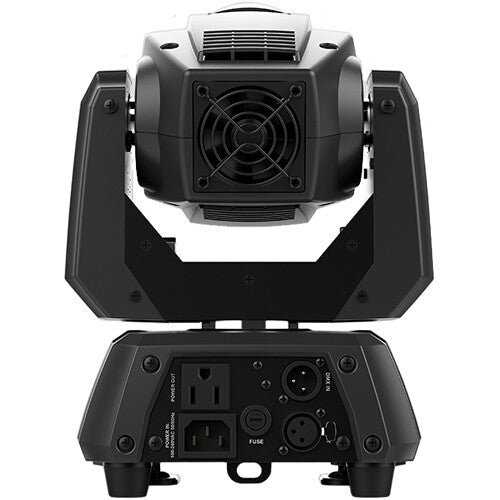

Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Plug Type: NEMA 5-15
Power / Current Consumption 120 VAC, 60 Hz: 60 W / 0.8 A
230 VAC, 50 Hz: 60 W / 0.4 A
Power Linking 9 Units at 120 VAC
16 Units at 230 VAC
Environmental
IP Rating None
Physical
Mounting Mounting Bracket
Exterior Color Black
Max Housing Temperature 104°F / 40°C
Cooling Fan
Certifications CE
*as per the Manufacturer
Dimensions 12 x 8.2 x 5.9" / 30.5 x 20.8 x 15 cm
Weight 8.8 lb / 4 kg
