Audio-Technica ATW-901A/G System 9 VHF Wireless Unipak System with AT-GcW Guitar/Instrument Input Cable

Audio-Technica ATW-901A/G System 9 VHF Wireless Unipak System with AT-GcW Guitar/Instrument Input Cable

Regular price $174.95 USD
Regular price Sale price $174.95 USD
Sale Sold out
Key Features
  • 169.505 to 171.905 MHz
  • Dipole Antenna for Extended Range
  • Channel, RF, and AF Peak Indicator LEDs
  • Balanced XLR & Unbalanced 1/4" Outputs
  • Squelch Control
  • Volume Control
  • Cord Hook to Prevent Accidental Pull-Out
  • Channel Selector Switches
  • Instrument and Microphone Trim Control
  • Professional Locking Bodypack Connector

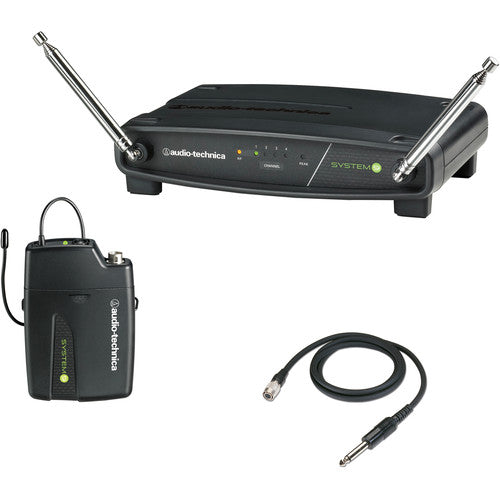

The Audio-Technica ATW-901A/G System 9 VHF Wireless Unipak System is designed for live sound reinforcement applications. The system consists of a wireless VHF receiver, a bodypack transmitter, and an AT-GcW guitar/instrument input cable.

The receiver utilizes two dipole antennas for extended range, and allows you to select your VHF transmission frequency from 169.505, 170.245, 171.045, or 171.905 MHz. The receiver includes LED indicator lights for channel, RF, and AF peak. The back of the receiver features a volume control knob, a squelch control knob, a balanced XLR audio output, and an unbalanced 1/4" audio output. The receiver also includes a power cord hook to prevent accidental pull-out of the DC power supply.

The bodypack transmitter is powered by two AA batteries and includes variable microphone and instrument trim, channel selection DIP switches, a Power/Mute button, and a Unipak input connector.

Four Selectable VHF Transmission Frequencies
Select from 169.505, 170.245, 171.045, and 171.905 MHz
Dipole Antenna for Extended Range
The receiver utilizes two antennas to improve the range of the system
Squelch Control
The receiver features a squelch adjustment knob that controls the threshold for the radio signal that regulates audio output. If the radio signal from the microphone drops below the threshold, the squelch control mutes the audio output to prevent the transmission of radio interference and white noise from entering the speakers

System
Wireless Technology Analog VHF
Number of RF Channel Frequencies 4
Included Transmitters 1 x Bodypack with Cable
Diversity Non-Diversity
RF Frequency Band 169 to 172 MHz
Max Operating Range 200' / 61 m
Built-In Recorder No
Control App Support No
Encryption None
Deviation ±10 kHz
Modulation FM
Receiver
Receiver Type Tabletop
Antenna 2 x Sleeve Dipole (Front-Mount)
Number of Audio Channels 1
Audio I/O 1 x XLR 3-Pin Female Balanced Line Output
1 x 1/4" TS Unbalanced Line Output
Phantom Power Protection None
Frequency Response 80 Hz to 13 kHz
Network I/O None
Word Clock I/O None
USB/Lightning Connectivity None
RF Output Power 10 mW
Squelch Adjustable
Spurious Rejection: >50 dB
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 VDC at 0.5 A, Center-Positive (Included)
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Display & Indicators 3 x LED (AF Level, Channel)
Operating Temperature 40 to 110°F / 4 to 43°C
Dimensions 7.5 x 1.8 x 5.1" / 190 x 46.2 x 128.5 mm
Weight 12 oz / 340 g
Transmitter
Transmitter Type Bodypack with Cable
RF Output Power 10 mW
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Balanced Input (Lockable)
Pad None
Muting Mute Switch
Auto-Level Control No
Signal Processing None
Frequency Response 80 Hz to 13 kHz (Line)
Antenna 1 x External
Power Requirements Battery
Battery Type 2 x AA (Not Included, Replaceable)
Approx. Battery Life 8 Hours
USB/Lightning Connectivity None
Display & Indicators 1 x LED (Battery Status, Peak, Power)
Dimensions 0.2 x 1 x 2.8" / 4 x 24.9 x 70.2 mm
Weight 2.8 oz / 79 g (without Batteries)
Specifications
Item # AUATW901AG
MPN -
Manufacturer Audio-Technica
