American DJ Mega Par Profile Plus RGB+UV LED Wash Light
American DJ Mega Par Profile Plus RGB+UV LED Wash Light
Couldn't load pickup availability
- Low-Profile PAR with RGB+UV Color Mixing
- For Color Washes and Black-Light Effects
- 30° Beam Angle
- 5 DMX Channel Modes
- 5 Operational Modes
- 64 Built-In Color Macros, Color Strobe
- Sit-Flat Design
- Adjustable Scissor Yoke
- Compatible with ADJ LED RC2 Remote
- Universal Autosensing Power Supply
Lighting designers and mobile DJs in search of a color wash fixture with UV will be impressed with the American DJ Mega Par Profile Plus, an RGB+UV LED wash light designed to produce color washes with bright and smooth color mixing, and black-light effects. With 107 10mm RGB LEDs, one 3W UV LED, and a 30° beam angle, it is well suited for venue lighting, dancefloor color washing, and providing illumination for stage performers. The fixture's lightweight and compact design allows for multiple units to be cased together for convenient transport and storage.
The unit gives you many creative options while still being easy to use. It offers automated programs such as Sound-Active, Auto-Run, Strobe, RGB+UV Dimmer, and Static Color modes for fast setup in standalone mode, and DMX mode for in-depth control. The master/slave option lets you coordinate multiple fixtures without the need for a controller. The fixture comes equipped with a scissor yoke that can be used for conventional mounting to a truss or lighting stand, or for creating a variable-angle floor stand. It can be wirelessly controlled with the ADJ LED RC2 remote (available separately).
- Slim PAR with 107 10mm RGB LEDs and one 3W UV LED (red, green, blue, UV) for color washes and black-light effects
- Smooth RGB+UV color mixing with fast or slow color change operation—30° beam angle
- The ultraviolet LED extends the color range for more color mixing possibilities

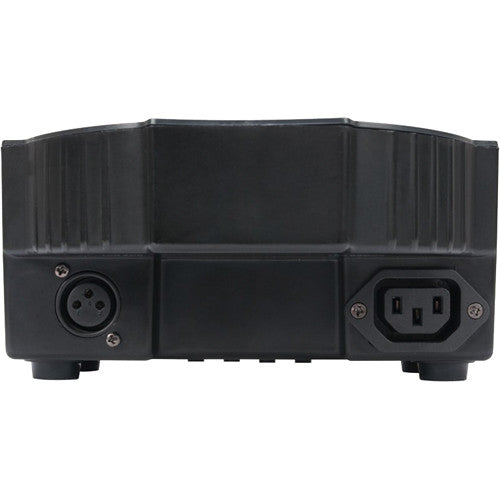

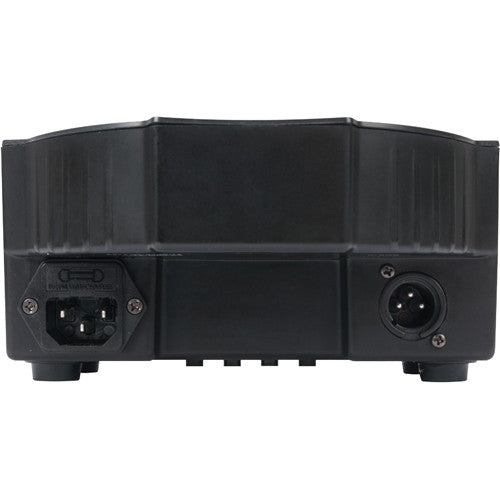

- Sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning fixture flat on the ground or recessed inside a truss
- 5 DMX channel modes: 4, 5, 6, 9, or 10 channels
- 5 operational modes with 32 built-in shows: Auto Run, Sound Active, RGB+UV Dimmer, Static Color, and DMX Controlled
- 64 built-in color macros
- Electronic dimming: 0 to 100%, with five dimmer curves (Standard, Stage, TV, Architectural, and Theater)
- Color strobe effect

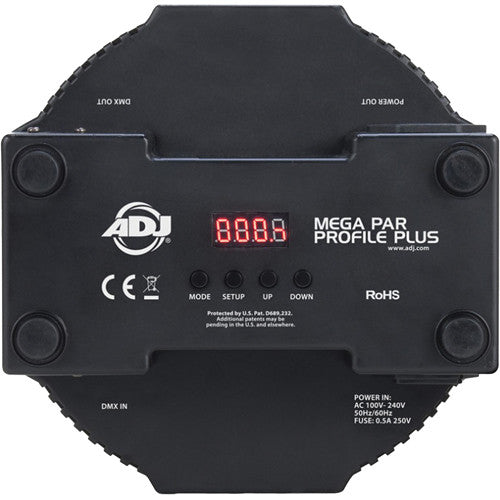

- LED display with 4-button menu for easy navigation
- Standalone or master/slave configuration
- Daisy-chain power for up to 33 fixtures at 120V and 60 fixtures at 240V
- Scissor yoke to hang fixture on truss, mount on a wall, or set on the ground
- Compatible with ADJ LED RC2 remote (available separately)
- Multivoltage operation: 100 to 240 VAC, 50/60 Hz, auto-sensing
American DJ Mega Par Profile Plus Specs
| Light Type | PAR |
| Light Source | 107 x Color LED 1 x Ultraviolet LED - 3 W |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | 26 x Red 45 x Green 36 x Blue 1 x Ultraviolet |
| Photometrics | 32.1 fc / 345 Lux at 6.5' / 2 m 1.8 fc / 92 Lux at 13.1' / 4 m |
| Beam Angle | 30° |
| Shutter / Strobe | Electronic |
| Dimming | Electronic, 0 to 100% with 5 Dimmer Modes |
| Operating Modes | Automatic, Color Dimmer, DMX, Sound-Active, Static Color |
| Macros / Programs | 64 x Color Macro 16 x Color Change 16 x Color Fade 16 x Sound-Active 64 x Color Macro |
| Effects | Strobe |
| Gobos | None |
| Control Protocols | DMX512 |
| DMX Channel Modes | 5 Mode(s): 4 / 5 / 6 / 9 / 10-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | IR Remote (with Optional Equipment) |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| Wireless Range | Remote: 30' / 9 m |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x IEC |
| Fuse | .5 A |
| Power / Current Consumption | 16 W (Max) |
| Power Linking | 33 Units at 120 VAC 60 Units at 240 VAC |
| IP Rating | None |
| Mounting | Dual/Scissor Yoke |
| Exterior Color | Black |
| Dimensions | 9 x 8.75 x 3.5" / 22.9 x 22.23 x 8.9 cm |
| Weight | 3 lb / 1.1 kg |
