American DJ
American DJ Mega Hex Par Compact RGBAW+UV LED Wash Light
American DJ Mega Hex Par Compact RGBAW+UV LED Wash Light
Couldn't load pickup availability
- Low-Profile Par for Wash/Uplighting
- 5 x 6W RGBAW+UV LEDs, 25° Beam Angle
- UV Glow, Variable Color Temperatures
- DMX and AC Connectors are Oriented Sideways
- 5 DMX Channel Modes
- 5 Operational Modes
- 0-100% Dimming
- Includes Adjustable Scissor Yoke
- Includes UC IR Wireless Remote
- Includes Airstream IR App Transmitter

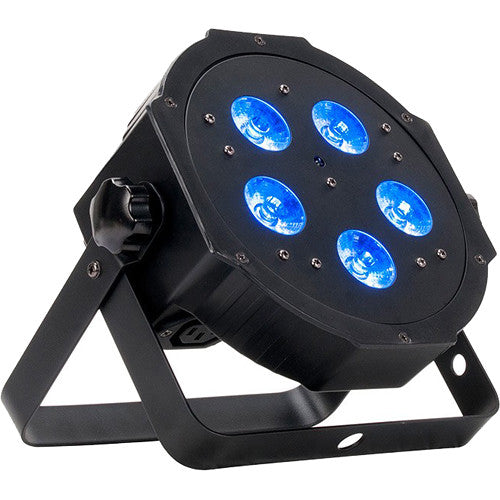

Lighting designers, event coordinators, and mobile entertainers in search of a quality wash-lighting fixture should check out the American DJ Mega Hex Par, a low-profile RGBAW+UV (red, green, blue, amber, and white, plus ultraviolet) LED Par fixture designed to produce a wide variety of bright color washes with smooth color mixing. Equipped with five 6W (6-in-1) Hex LEDs that have a beam angle of 25°, you can create wide washes of amber-infused or white light in varying color temperatures, or vibrant colors such as hot pinks, lime greens, and electric blues, or make the classic UV glow for venue uplighting and heat-free illumination for stage performers.
Featuring a flat profile with convenient side-positioned power and DMX in/out sockets, the Mega Hex Par can sit directly on the ground or inside a truss without the scissor yoke—ideal for architectural wall washing. The Mega Hex Par is wirelessly controllable with the included UC IR remote via the myDMX software or the Airstream DMX Bridge app (both available separately) using the included Airstream IR app transmitter. The fixture ships with a scissor yoke that can be used to create a variable-angle floor stand for conventional mounting to a truss or lighting stand.
- Compact, low-profile PAR designed for uplighting and stage washes

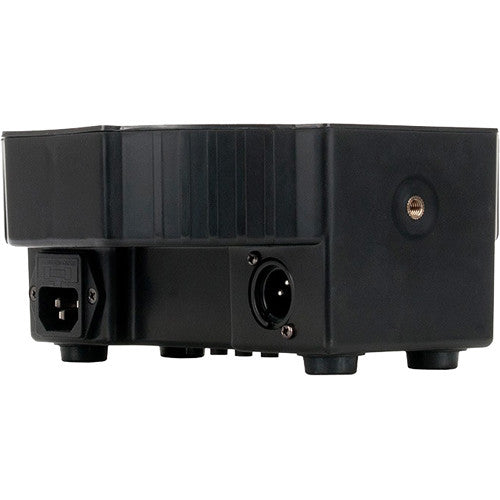

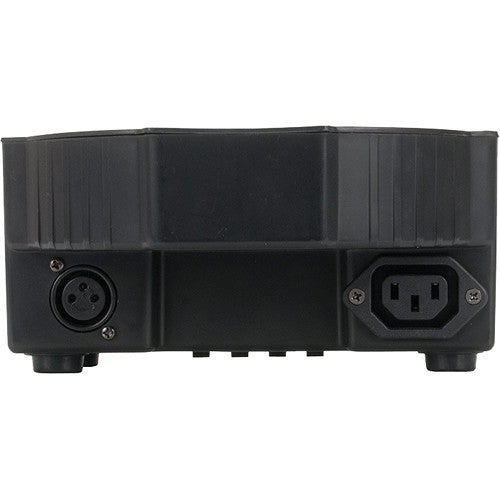

- Proprietary sit-flat design with DMX and IEC AC in/out connectors on the side, for positioning the fixture flat on the ground or recessed inside a truss
- 5 x 6W, 6-in-1 RGBAW+UV (red, green, blue, amber, white + ultraviolet) LEDs offer smooth color mixing—fast or slow color change operation
- Create a classic UV glow effect as well as exciting UV-infused colors—hot pinks, lime greens, electric blues
- Amber and white LED elements generate white light at varying color temperatures
- Variable-color strobe effect
- 0-100% electronic dimming with five dimmer curves (Standard, Stage, TV, Architectural, Theater)
- 25° beam angle
- Flicker-free light for use with video applications
- Standalone or Master/Slave configurations
- Daisy-chain power for up to 20 units at 120V and 36 units at 240V

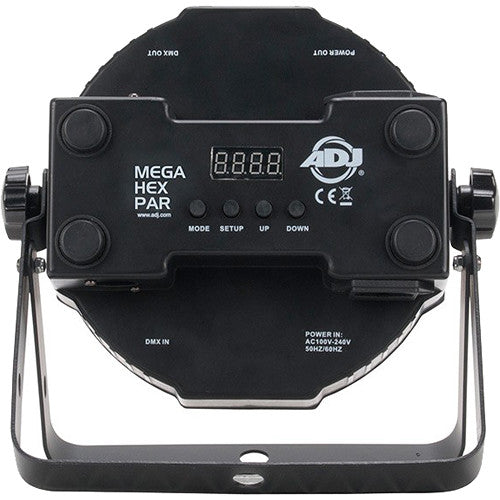

- Digital DMX display with 4-button menu for easy navigation

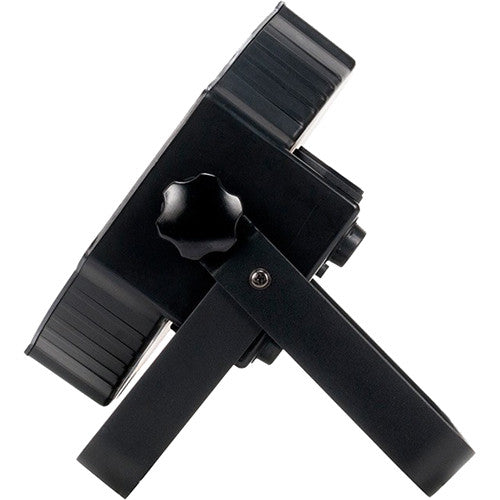

- Included scissor yoke to hang fixture on a truss, mount on a wall, or set on the ground
- Multivoltage operation: 100-240 VAC, 50/60 Hz, auto-sensing
- DMX Mode: enables you to control the fixture's traits with a standard DMX512 controller—6, 7, 8, 11, or 12 channel modes
- RGBAW+UV Dimmer Mode: choose one of the six colors to remain static or adjust the intensity of each color to create your own color
- Sound-Active Mode: the unit reacts to the beat of the music, chasing through the built-in programs—16 sound active modes
- Auto Run Mode: 16 x color fade modes, 16 x color change modes, and 1 x combination mode
- Static Color Mode: 63 built-in color macros
- Wirelessly control Black Out, Full On, Strobe, Dimming, Sound Active, and Color Change functions
- Includes UC IR wireless remote
- Includes Airstream IR app transmitter used to control the fixture via the myDMX software or the Airstream DMX Bridge app (both available separately) running on an iPhone or iPad
American DJ Mega Hex Par Specs
| Light Type | PAR |
| Light Source | 5 x Color/UV LED - 6 W |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red Green Blue White Amber Ultraviolet |
| Beam Angle | 25° |
| Shutter / Strobe | Electronic |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | Automatic, Color Dimmer, DMX, Primary/Secondary, Sound-Active |
| Macros / Programs | 63 x Color Macro |
| Effects | Strobe |
| Gobos | None |
| Control Protocols | DMX512 |
| DMX Channel Modes | 5 Mode(s): 6 / 7 / 8 / 11 / 12-Channel |
| Display / Controls | LED / 4-Button |
| Remote Control | Airstream IR, IR Remote (with Included Equipment) |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x IEC Plug Type: NEMA 5-15 |
| Power / Current Consumption | 30 W |
| Power Linking | 30 Units |
| IP Rating | None |
| Mounting | Dual/Scissor Yoke |
| Duty Cycle | None |
| Exterior Color | Black |
| Certifications | ETL *as per Manufacturer |
| Dimensions | 10.2 x 10.2 x 4.2" / 259.1 x 259.1 x 106.7 mm |
| Weight | 4 lb / 1.8 kg |
