AKG WMS40 Mini Single Instrumental Set Wireless Microphone System
AKG WMS40 Mini Single Instrumental Set Wireless Microphone System
Couldn't load pickup availability
- For Guitar & Bass Instruments
- SR40 Mini Single Wireless Receiver
- PT40 Mini Wireless Bodypack Transmitter
- Single Fixed Frequency
- Includes Instrument Cable
- Universal Power Supply
The WMS40 Mini Single Instrumental Set Wireless Microphone System from AKG is a true plug and play wireless solution that provides clear audio sound. It can be used with guitar and bass instruments, headsets, and instrumental mics in applications to capture audio for live stage, rehearsals, hotels, gyms, and more. In addition, it has an extremely long battery life of 30 hours on a single AA battery, and saves money in day-to-day operation.

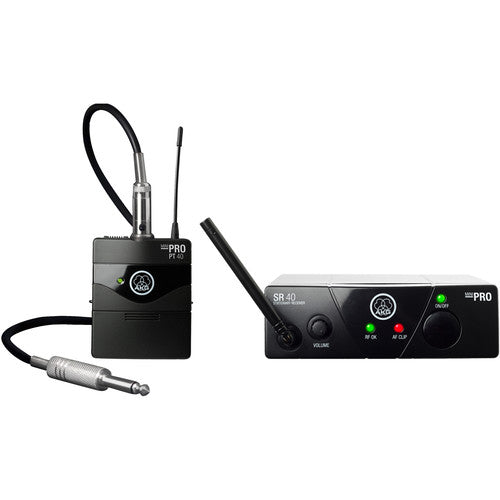

The WMS40 is a fixed frequency system and includes a SR40 single wireless receiver, PT40 mini pocket wireless transmitter, MKG L instrument cable, and a universal power supply.
Audio Frequency Response | 40 to 20 kHz |
Signal to Noise | 110 dBA |
Total Harmonic Distortion (THD) | 0.8 % @ 1 kHz |
Peak Deviation | 45 kHz |
Nominal Deviation | 15 kHz |
Radio Output Power | 10 mW |
Transmitter Synchronization | Manual |
Audio Input | 3-pin mini XLR-F |
Channels | 3 |
Number of Selectable Frequencies | 1 fixed frequency |
Range | 66' (20 m) |
Modulation | FM |
Pilot Tone | No |
Encryption | No |
Maximum Audio Level | 12 dB |
Battery | 1 x LR6 AA alkaline |
Operating Time | 30 hours |
Material of Construction | Plastic |
Dimensions | 2.4 x 3.0 x 1.2" (60 x 75.5 x 30 mm) |
Weight | Not specified by manufacturer |
Audio Frequency Response | 40 to 20 kHz |
Signal to Noise | 110 dBA |
Total Harmonic Distortion | 0.8% @ 1 kHz |
Operating Temperature Range | 14 to 131°F (-10 to 55°C) |
Radio Sensitivity | -100 dBm |
Channels | 3 |
Number of Selectable Frequencies | 1 fixed frequency |
Frequency Selection | Fixed |
Range | 66' (20 m) |
Modulation | FM |
Encryption | No |
Pilot Tone | No |
Transmitter Synchronization | Not necessary |
HiQnet Compatible | No |
Rack Compatibility | 1/3 rack size (19") Rack height: 1 RU |
Antenna | 1 x fixed external antenna |
Audio Output | 1 x balanced TRS 1/4" (6.3 mm) female jack Balanced audio output adjustable from mic to line level Output level at rated deviation: 500 mV rms |
Internal Power Supply | No Type: DC socket Voltage: 12 V |
Material of Construction | Metal |
Dimensions | 5.2 x 1.7 x 5.2" (132 x 43 x 133 mm) |
